E- Rickshaw Battery -51.2V/105/AH

Product Description

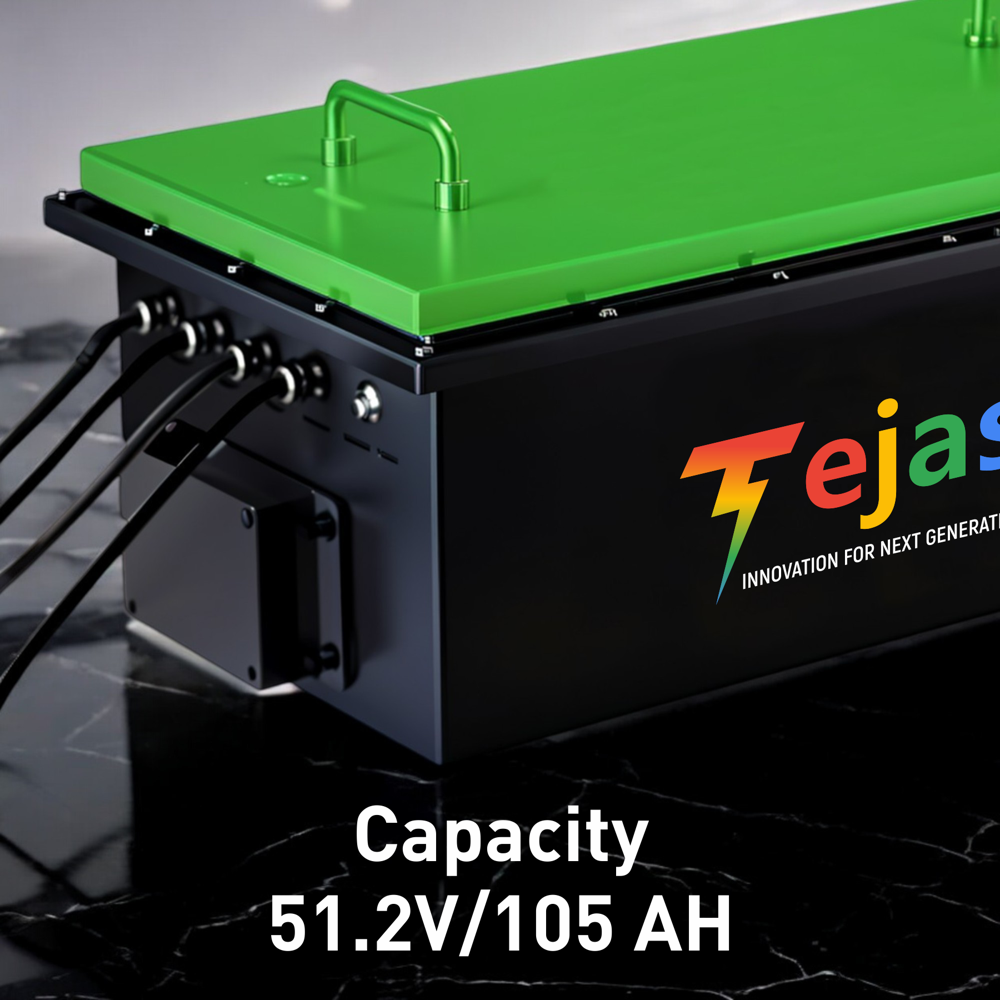

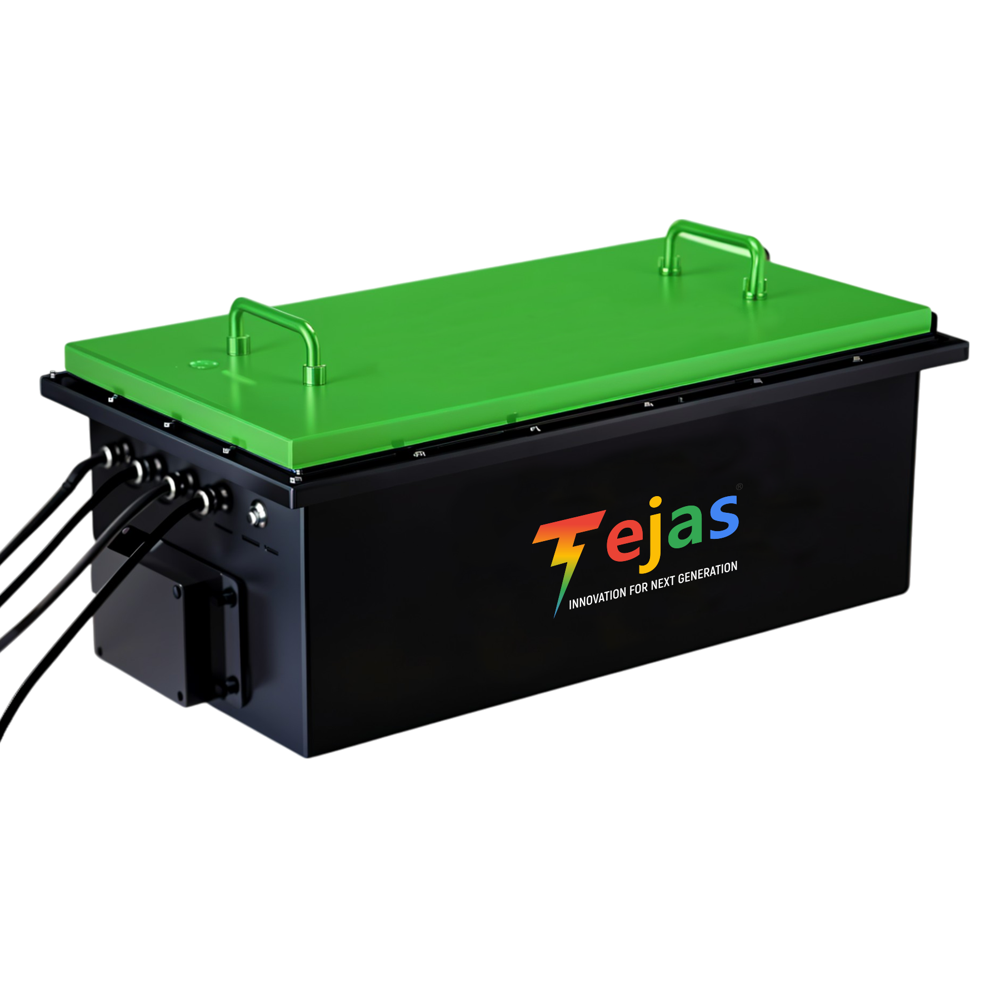

E-Rickshaw Battery 51.2V / 105AH (Lithium)

Category: Lithium Battery
Model: 51.2V / 105AH
Battery Chemistry: LiFePO / NMC with Smart BMS

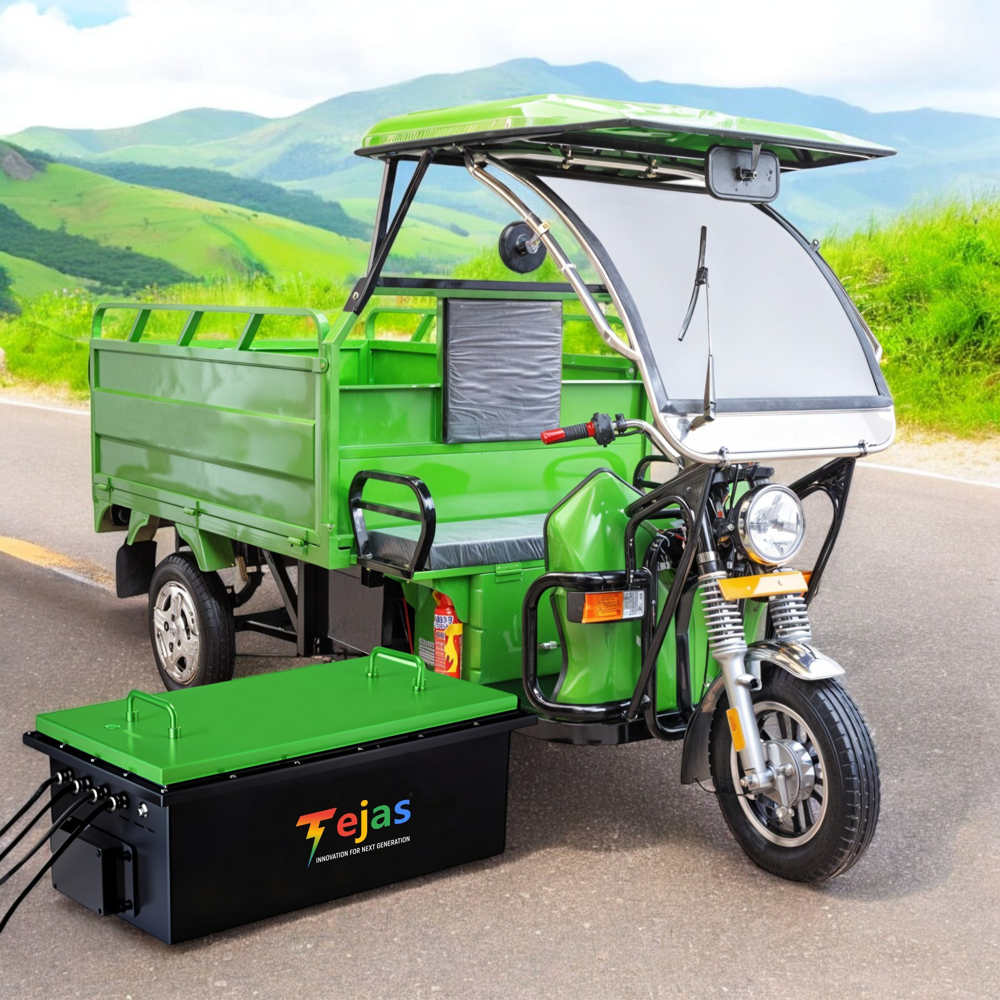

Application: E-Rickshaw Battery
MOQ: 50 Units
Warranty: 36 Months

Product Description:

The 51.2V 105AH Lithium E-Rickshaw Battery is a next-generation energy solution offering superior performance, lightweight design, and extended cycle life. Equipped with a Smart BMS (Battery Management System), it ensures maximum safety, fast charging, and optimal power output for modern electric rickshaws.

Technical Specifications:

• Battery Type: Lithium-ion (LiFePO / NMC)

• Nominal Voltage: 51.2V

• Rated Capacity: 105AH

• Energy Capacity: ~5.38 kWh

• Cycle Life: 2000 Cycles (at 80% DOD for LiFePO)

• BMS Type: Smart BMS with protection & communication (UART/CAN/RS485)

• Operating Temperature Range: 0C to 60C

• Charging Compatibility: Compatible with lithium chargers (up to 20A recommended)

• Communication Ports: Optional (UART/CAN) for data logging and diagnostics

• Protection Features:

  • Overcharge / Overdischarge Protection

  • Overcurrent / Short Circuit Protection

  • Temperature Protection

  • Cell Balancing

  • Reverse Polarity Protection

Mechanical & Design Details:

• Enclosure Type: Rigid metal or ABS fire-retardant casing

• Dimensions: Approx. 470mm x 250mm x 210mm (may vary by model)

• Weight: Approx. 3540 kg

• Cooling System: Passive or optional active cooling

• Mounting Type: Under-seat or compartment mountable

Application:

• Ideal for premium and high-efficiency electric rickshaws

• Designed for extended mileage and quick charging cycles

• Suitable for smart fleet operations and BMS-monitored systems

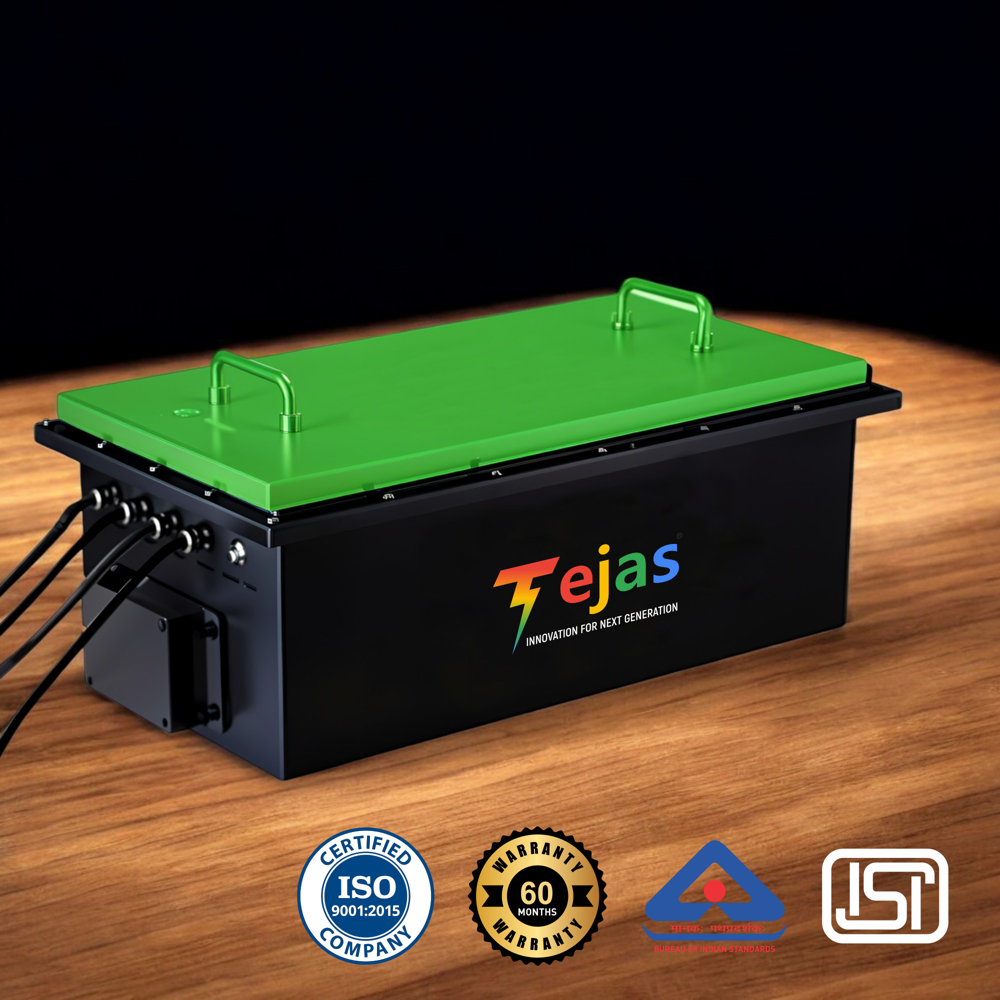

Certifications & Compliance:

• CE / RoHS / UN38.3 Certified

• AIS 156 Compliant (optional)

• ISO 9001 & ISO 14001 Certified

• Environmentally Safe & Fully Recyclable
