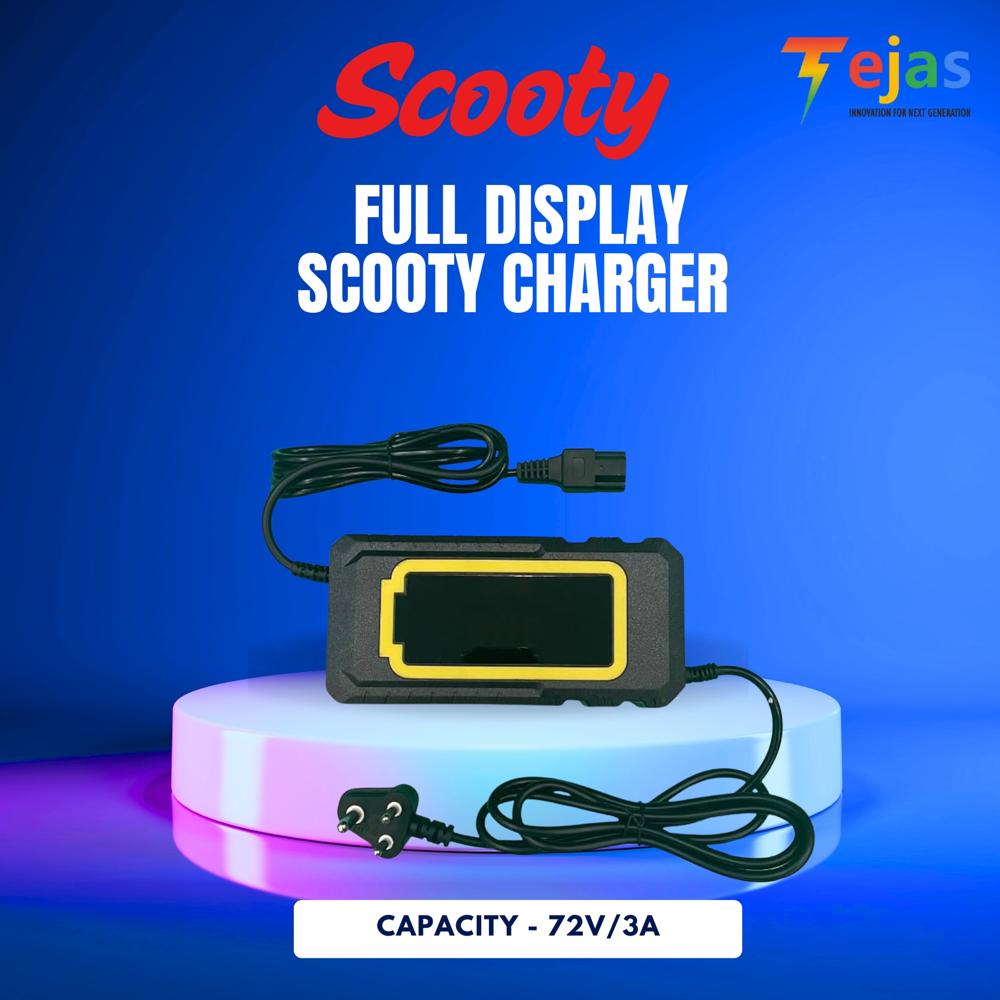

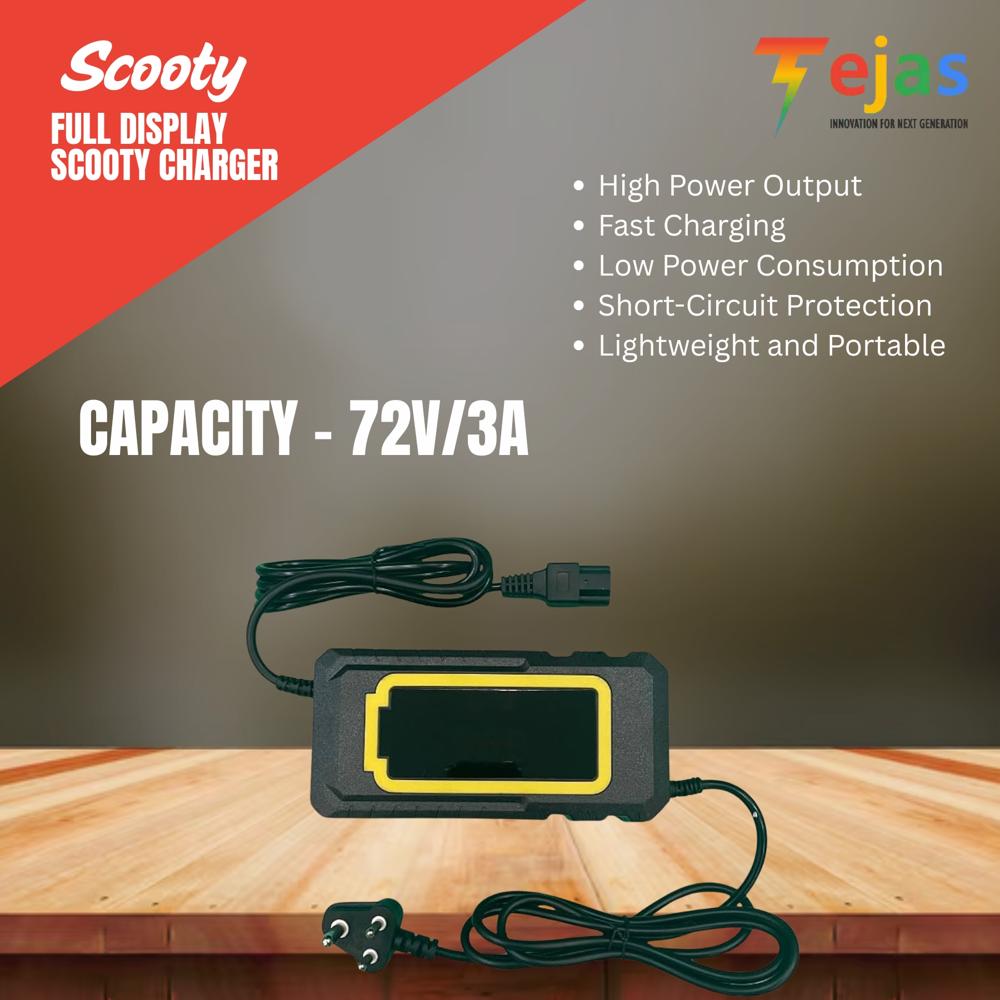

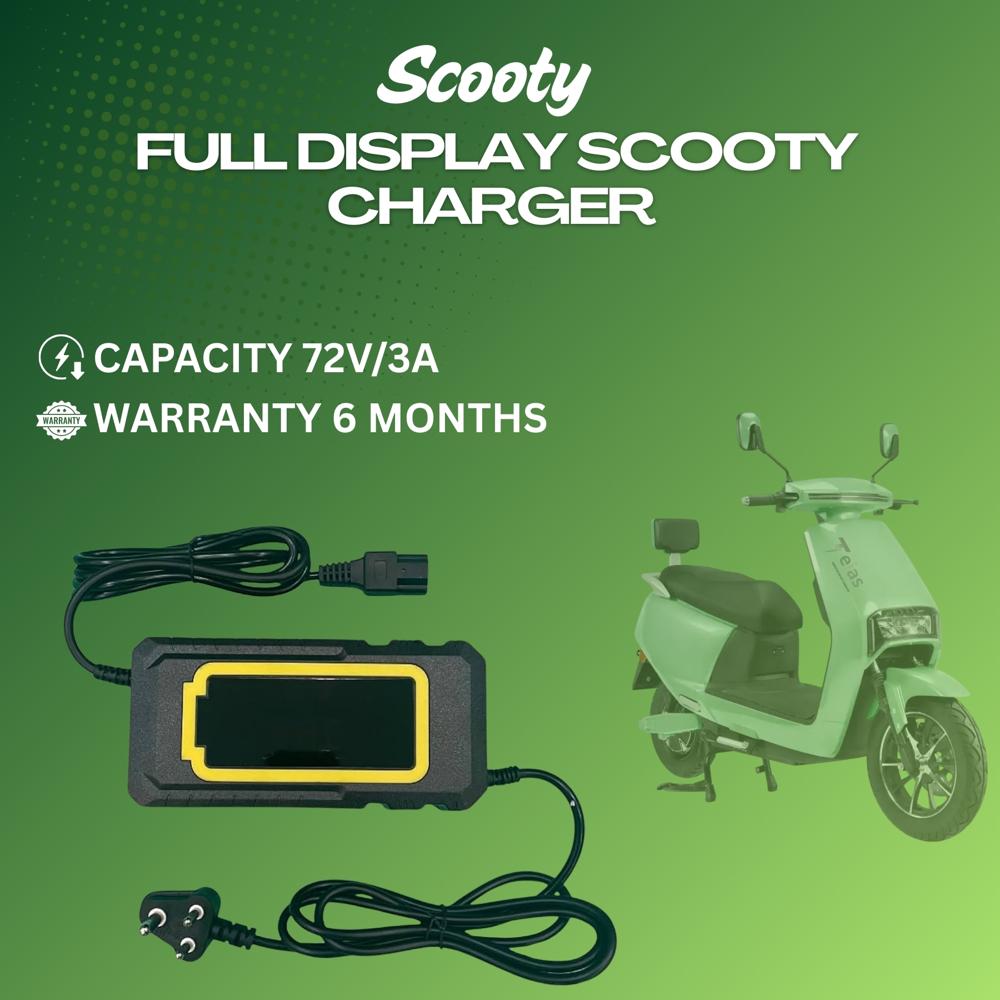

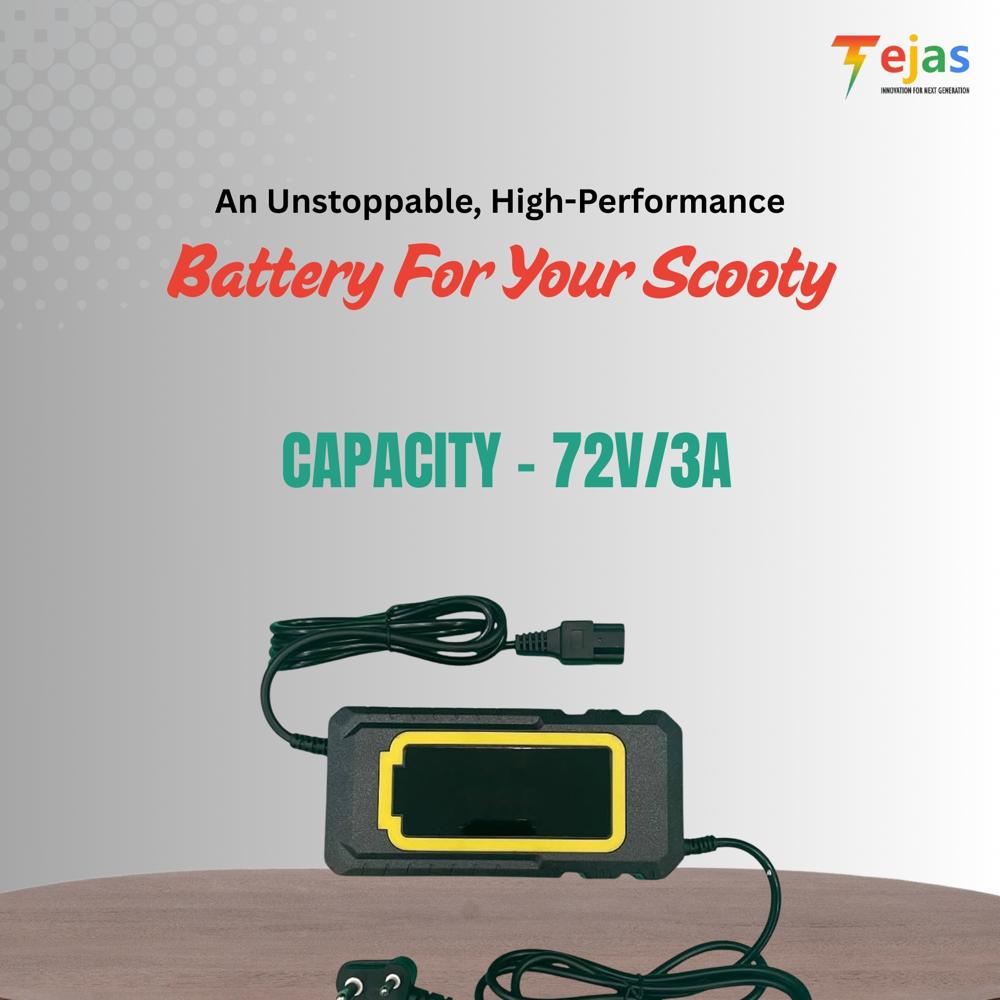

FULL DISPLAY SCOOTY CHARGER 72V/3A

About FULL DISPLAY SCOOTY CHARGER 72V/3A

Full Display Scooty Charger 72V/3A

Category: Scooty Charger
Application: Electric Scooters / E-Bikes (72V Lithium Battery Systems)
Output Voltage: 72V DC
Output Current: 3A
MOQ (Minimum Order Quantity): 24 Units
Warranty: 6 Months

Technical Specifications:

• Input Voltage: AC 100240V, 50/60Hz

• Output Voltage: 72V DC

• Output Current: 3A

• Charging Method: CC-CV (Constant Current Constant Voltage)

• Battery Compatibility: 72V Lithium-ion Battery Packs (20S configuration)

• Display: Full LCD Display showing:

  • Voltage

  • Current

  • Charging Progress

  • Error Notifications

• Connector Type: Standard 3-pin / 2-pin / Custom Plug (on request)

• Cooling Mechanism: Built-in fan cooling system

• Casing Material: Flame-retardant ABS or aluminum housing

• Cable Length: Approx. 1.5 meters

• Charging Efficiency: 85%

• Operating Temperature: 0C to 45C

• Storage Temperature: -20C to 60C

Protection Features:

• Over Voltage Protection (OVP)

• Over Current Protection (OCP)

• Short Circuit Protection (SCP)

• Reverse Polarity Protection

• Over Temperature Protection (OTP)

• Auto Cut-Off After Full Charge

Key Features:

• Full LCD Display: Real-time monitoring of charging parameters and battery condition

• Efficient 3A Output: Suitable for regular-speed charging of 72V battery systems

• Smart Cooling: Ensures reliable performance during continuous charging

• Multiple Protections: Enhances safety for both charger and battery

• Custom Connector Support: Compatible with a wide range of scooter models

Applications:

• Electric Scooters and E-Bikes using 72V (20S) lithium-ion batteries

• Medium-capacity EV battery packs

• Ideal for fleet charging where visual monitoring is required
