IMPORTED SCOOTY CHARGER 67V/6A

Price 1434.0 INR/ Piece

Get a Price/Quote

MOQ : 12 Pieces

IMPORTED SCOOTY CHARGER 67V/6A Specification

Input Voltage
220V AC

Charger Type
IMPORTED Scooty Charger

Top Speed
Not Applicable (Charger only)

Range
Not Applicable (Charger only)

Manufacturing Year
2023

Vehicle Model
Universal Fit (for compatible batteries)

Model No
SCOOTYCHG-67V6A

Usage & Applications
Scooty/Lithium Battery Charging

Torque
Not Applicable (Charger only)

Batteries Type
Lithium-Ion

Battery Life
Not Applicable (Charger only)

Battery Capacity
67V Compatible, 6A Output

Vehicle Type
Electric Scooty Compatible

Seat Capacity (Person)
Not Applicable (Charger only)

Drive Type
Not Applicable (Charger only)

Wheelbase
Not Applicable (Charger only)

Frequency
50 Hz

Features
Overcharge Protection, Short Circuit Protection, LED Status Indicator

Charging Time
Varies (depends on battery size)

Ground Clearance
Not Applicable (Charger only)

Motor Power
Not Applicable (Charger only)

Charger Capacity
67V/6A

Weight
Approx 1.5 kg

Product Model
SCOOTYCHG-67V6A

Efficiency
>85%

Protection
Over Voltage, Short Circuit, Over Temperature, Reverse Polarity

Dimension (L x W x H)
180mm x 90mm x 60mm

Operating Temperature
0C-40C

Storage Temperature
-20C to 60C

Suitable For
67V E-Bike and E-Scooty Batteries

Input Plug Type
Standard 3-Pin Plug

Cable Length
Approx 1.2 M

Mounting Type
Portable/Table Top

Shell Material
ABS Plastic

Cooling System
Inbuilt Cooling Fan

Charging Indicator
LED Display

Output Type
DC Output

About IMPORTED SCOOTY CHARGER 67V/6A

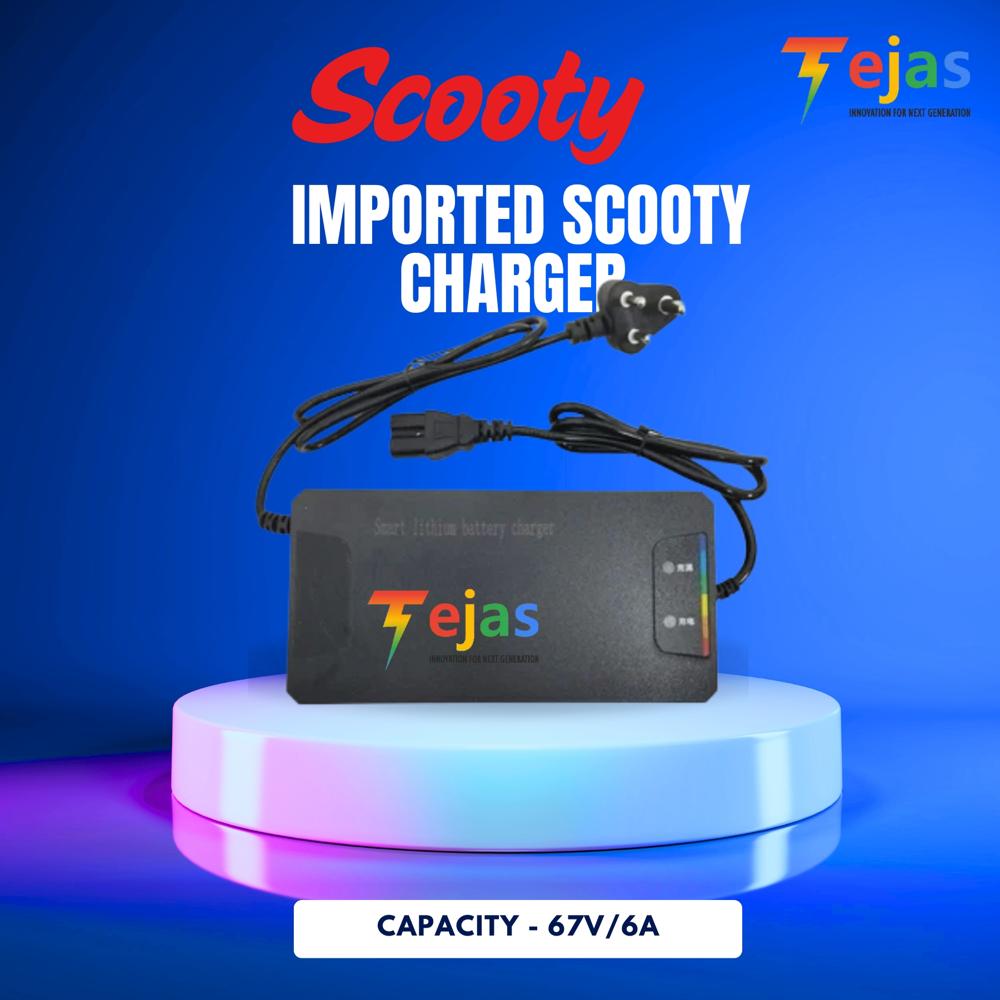

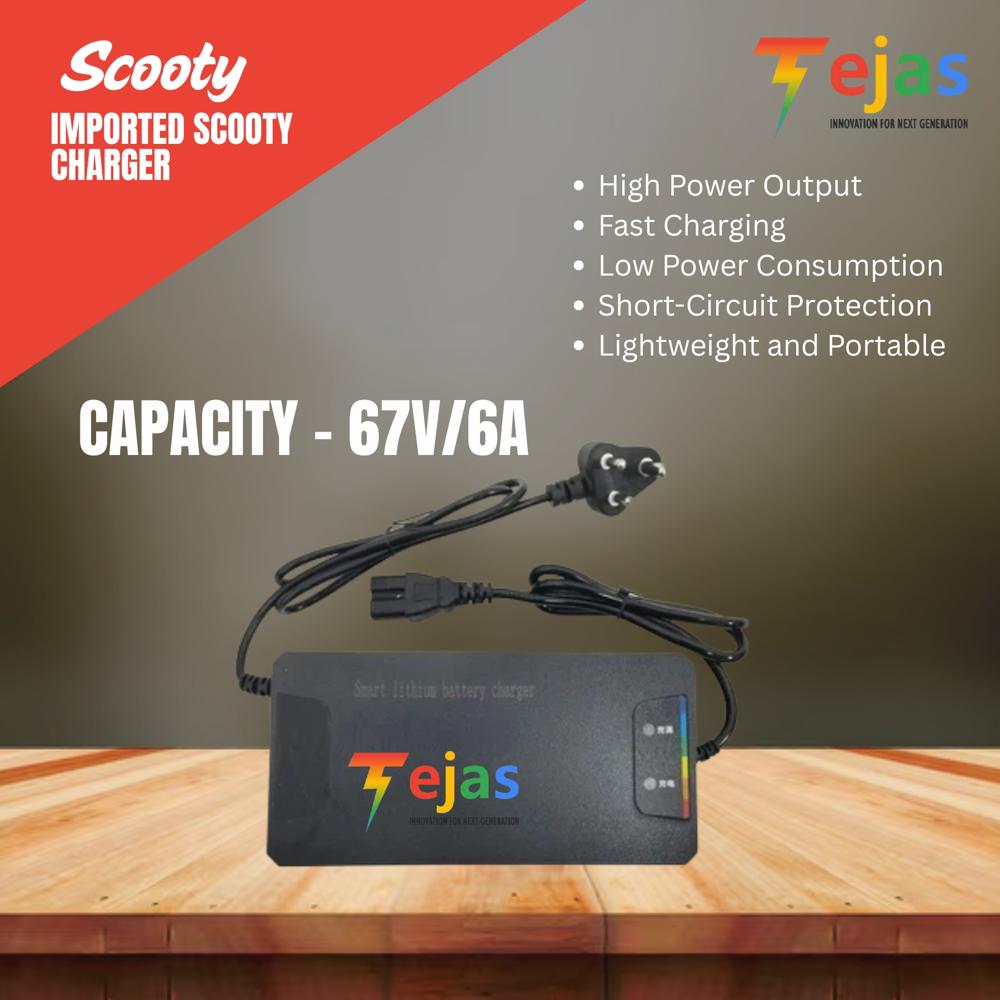

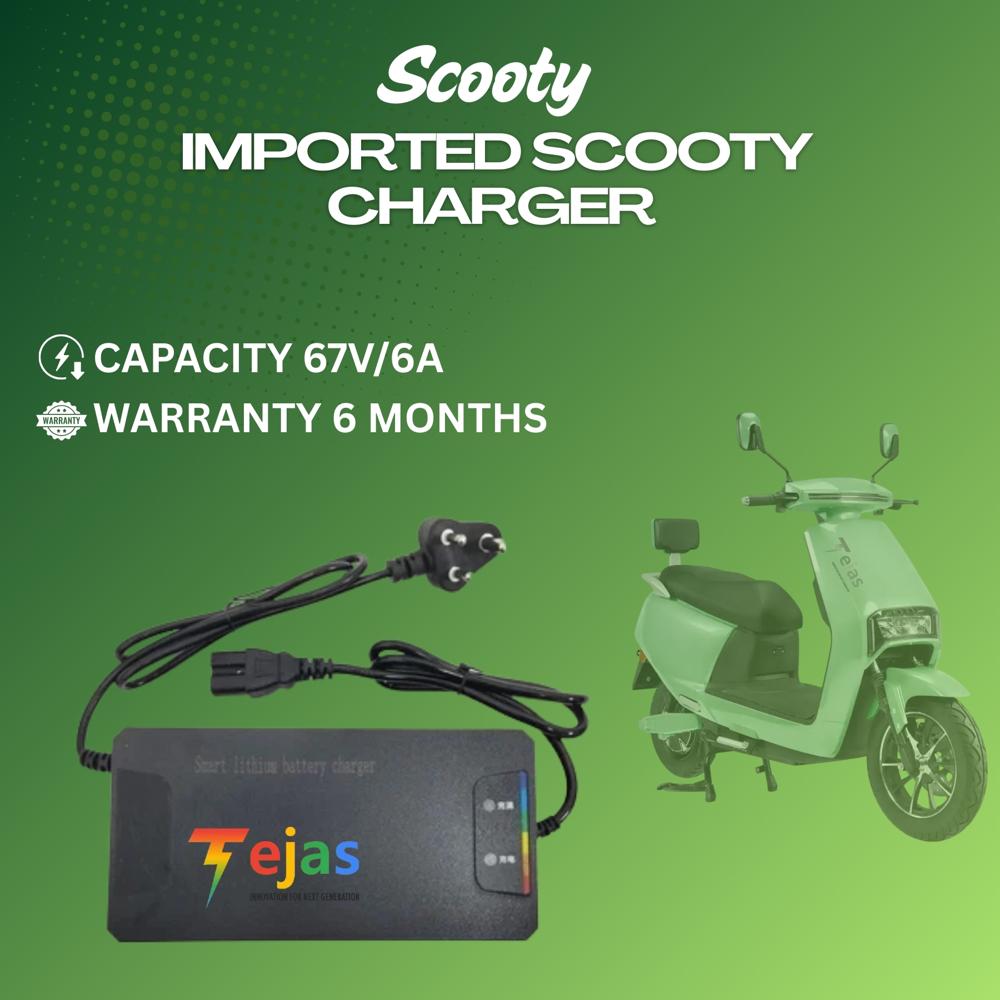

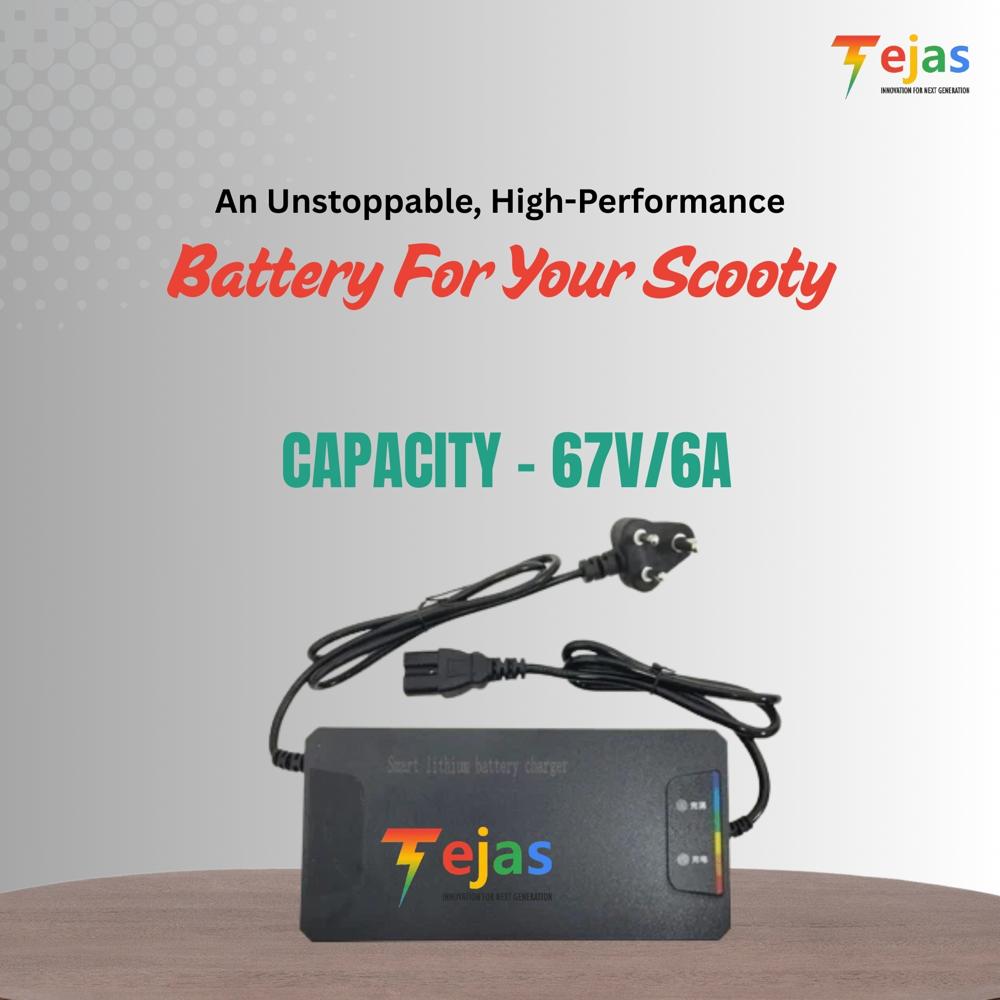

Imported Scooty Charger 67V/6A

Category: Scooty Charger
Application: Electric Scooters / E-Bikes
Output Voltage: 67V DC
Output Current: 6A
MOQ (Minimum Order Quantity): 24 Units
Warranty: 6 Months

Technical Specifications:

Input Voltage: AC 100240V, 50/60Hz
Output Voltage: 67V DC (typically for 60V lithium-ion battery packs 16S configuration)
Output Current: 6A
Charging Method: CC-CV (Constant Current Constant Voltage)
Battery Compatibility: 60V Lithium-ion Battery Packs
Connector Type: Standard 3-pin / 2-pin / Custom Plug (as per requirement)
Cooling Mechanism: Built-in fan for air cooling
Shell Material: Durable ABS or Aluminum Alloy (depending on model)
Cable Length: 1.21.5 meters
Charging Efficiency: 85%
Operating Temperature: 0C to 45C
Storage Temperature: -20C to 60C

Safety & Protection Features:

Over Voltage Protection (OVP)
Over Current Protection (OCP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Reverse Polarity Protection
Auto Shut-Off After Full Charge

Key Features:

Imported Quality: Built with reliable components suitable for everyday use.
Efficient Charging: 6A output ideal for moderate-speed charging of 60V e-scooters.
Safe Operation: Full suite of safety features to protect battery and charger.
LED Indicators: Show charging status Power ON / Charging / Fully Charged.
Plug & Play: Easy to use with standard connectors (customizable if required).

Applications:

Electric Scooters (60V battery systems)
E-Bikes and Two-Wheelers
Small E-Rickshaws
67V Compatible Lithium Battery Packs (16S)

Built-in Safety and Cooling Features

This charger is equipped with multiple protections including over-voltage, short circuit, over-temperature, and reverse polarity safeguards, ensuring the safe charging of your valuable batteries. Its inbuilt cooling fan maintains optimal temperature during operation, prolonging the life of both the charger and the battery.

Universal Compatibility for Scooty and E-Bike Batteries

Designed for use with 67V lithium-ion batteries, this charger is compatible with a wide range of electric scooter and e-bike models. Its 6A output allows for efficient charging, while its portable and table-top design makes it perfect for users at home, workshops, or dealerships.

Convenient Charging with LED Indicator

Featuring an LED status display, this charger provides clear visual feedback on the charging process. The indicator helps users monitor charging status in real time, eliminating guesswork and allowing you to know when your battery is fully charged.

FAQs of IMPORTED SCOOTY CHARGER 67V/6A:

Q: How do I use the 67V/6A Imported Scooty Charger with my e-scooty battery?

A: Simply connect the chargers DC output to your 67V compatible lithium-ion battery and plug the standard 3-pin input plug into a 220V AC power socket. The LED display will indicate charging status, making it easy to monitor progress.

Q: What kind of batteries is this charger suitable for?

A: This charger is specifically designed for 67V lithium-ion batteries found in most electric scooters and e-bikes. Verify your batterys voltage and compatibility before use.

Q: What safety features does this charger offer?

A: It includes comprehensive built-in protections against over-voltage, short circuits, over-temperature, and reverse polarity, helping to safeguard both the battery and the charger during operation.

Q: When should I use this charger to maximize battery life?

A: To promote battery longevity, use the charger when your e-scooty battery reaches around 20% capacity and always charge in a temperature-controlled environment (0C to 40C). Avoid overcharging, thanks to the chargers built-in overcharge protection.

Q: Where can I store the charger when not in use?

A: The charger can be safely stored in a cool, dry place within a temperature range of -20C to 60C. Its compact design and lightweight build make it convenient to transport and store.

Q: What are the benefits of the LED charging indicator?

A: The LED display provides clear feedback on whether your battery is charging, fully charged, or if there is a fault, ensuring you always know the status of your battery and charging session.

Q: Is this charger suitable for all electric scooter brands?

A: This charger is universally compatible with 67V lithium-ion batteries, making it suitable for a broad range of electric scooter and e-bike brands as long as they match the voltage and connector compatibility.
