Mono PERC 560 watt (Tejas, Monocrystalline, DCR)

Product Description

Tejas 560W Monocrystalline Solar Panel

Brand: Tejas
Product Type: Monocrystalline
Warranty: 25 Years
Module Efficiency: 21.55%
Power Tolerance: -0+5%

Electrical Specifications:

• Maximum Power (Pmp): 560W

• Open Circuit Voltage (Voc): 49.96V

• Short Circuit Current (Isc): 14.32A

• Maximum Power Voltage (Vmp): 42.18V

• Maximum Power Current (Imp): 13.37A

• Module Efficiency: 21.55%

• Maximum System Voltage: 1500V DC

• Temperature Coefficients:

  • Pmax Temperature Coefficient: -0.35%/C

  • Voc Temperature Coefficient: -0.30%/C

  • Isc Temperature Coefficient: 0.06%/C

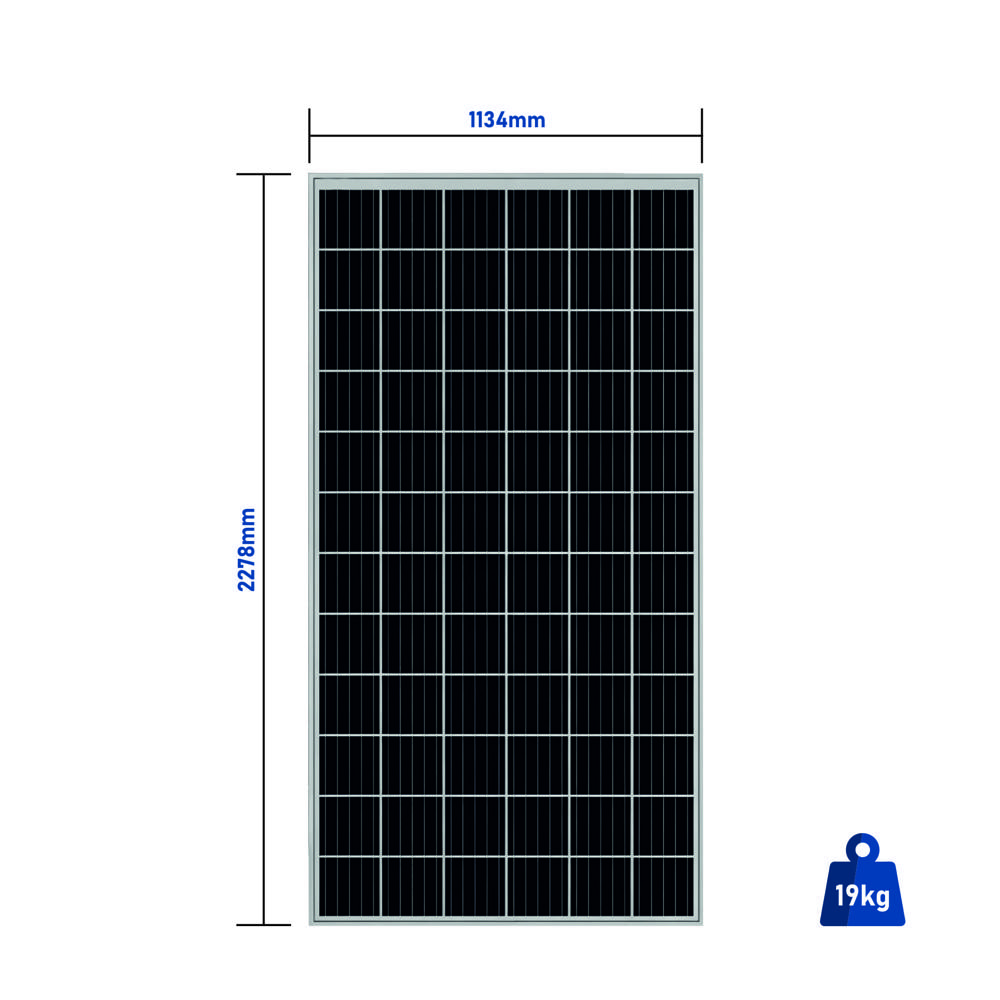

Mechanical Specifications:

• Solar Cells: Monocrystalline PERC, 91mm x 182mm

• Front Glass: 3.2mm Low Iron, Tempered Glass

• Frame: Anodized Aluminum Alloy

• Junction Box: IP68 Rated, 6 Split

• Output Cable: 4.0mm (-) 350mm and (+) 160mm in length

• Connector: MC4 Compatible

• Mechanical Load:

  • Snow Load: 5403 Pa

  • Wind Load: 2400 Pa

• Frame & Glass:

  • Frame: Anodized Aluminum Frame for durability

  • Glass: Tempered glass with an anti-reflective coating

Performance and Environmental Ratings:

• Operating Temperature: -40C to +85C

• Nominal Operating Cell Temperature (NOCT): 45 2C

• Irradiance: 1000 W/m at AM 1.5

• Salt Mist Corrosion Resistance: Tested for marine environments

• Ammonia Resistance: Suitable for agricultural areas

• Bypass Diodes: 6 diodes for preventing overheating

• Anti-Reflective Coating: Improves light absorption and efficiency

• Integrated Optimizer: Optional for panel performance enhancement

Packaging and Logistics:

• Pieces Per Pallet: 31

• Pallets Per Container: 18

• Pieces Per Container: 500

• Container Type: 40'GP (General Purpose Container)

Sustainability and Environmental Impact:

• Carbon Footprint: 50g CO/kWh

Additional Features:

• Mono PERC (Passivated Emitter Rear Contact) Technology for higher efficiency

• 25 Year Warranty for performance and materials
